1. Overview

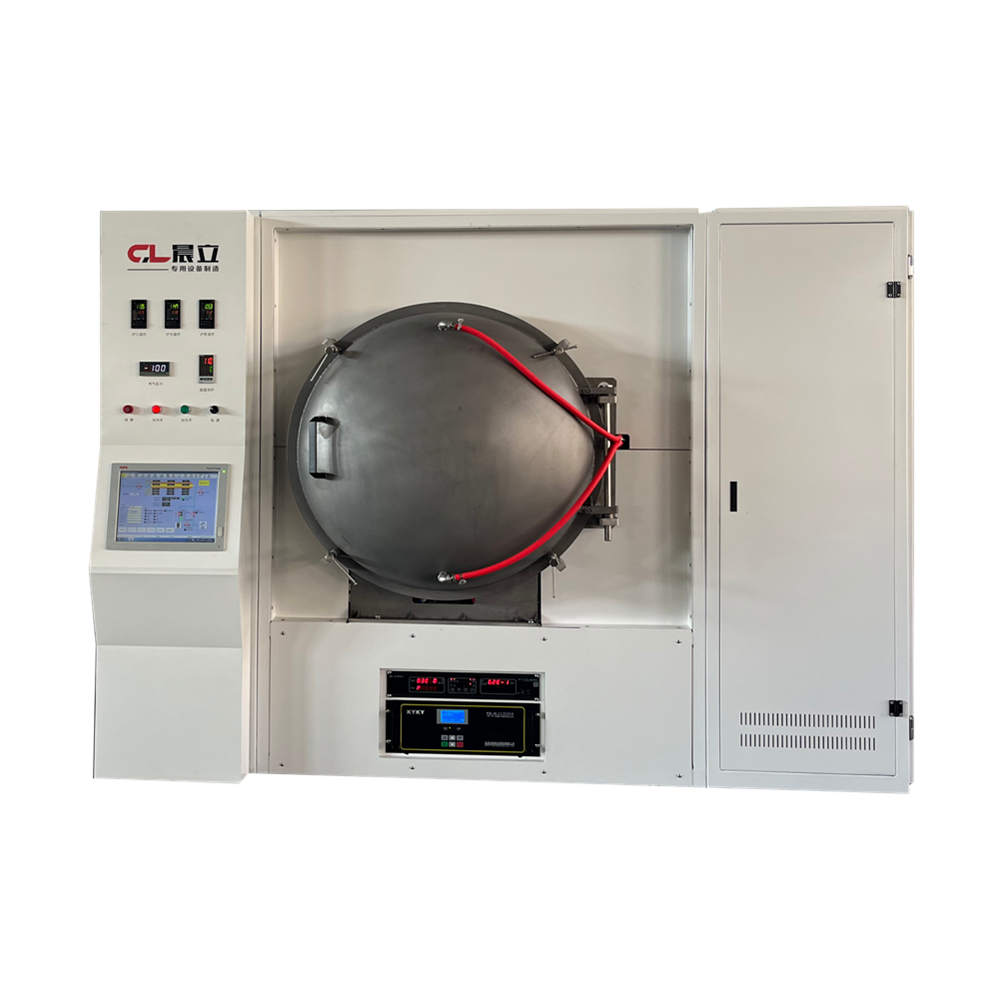

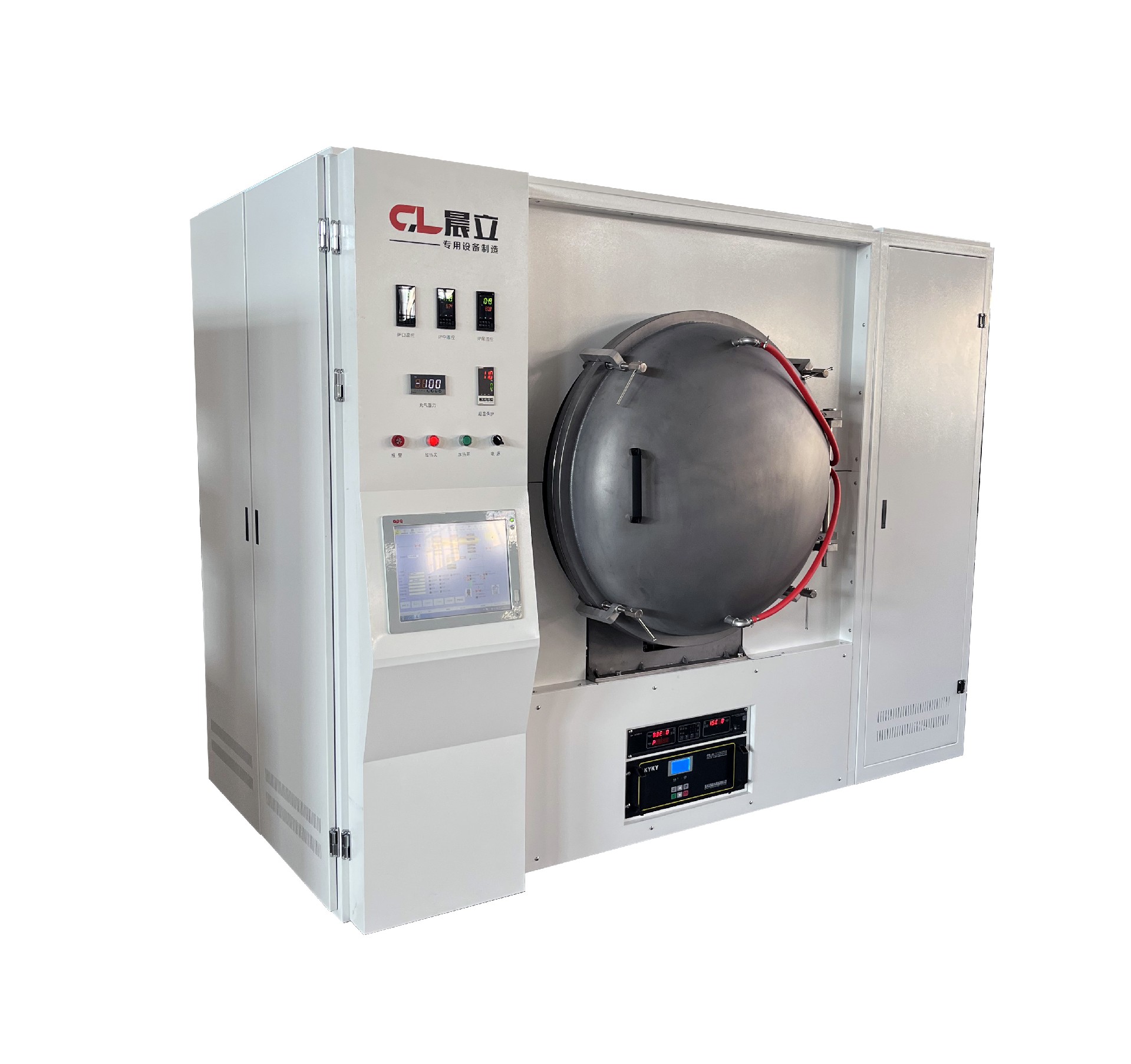

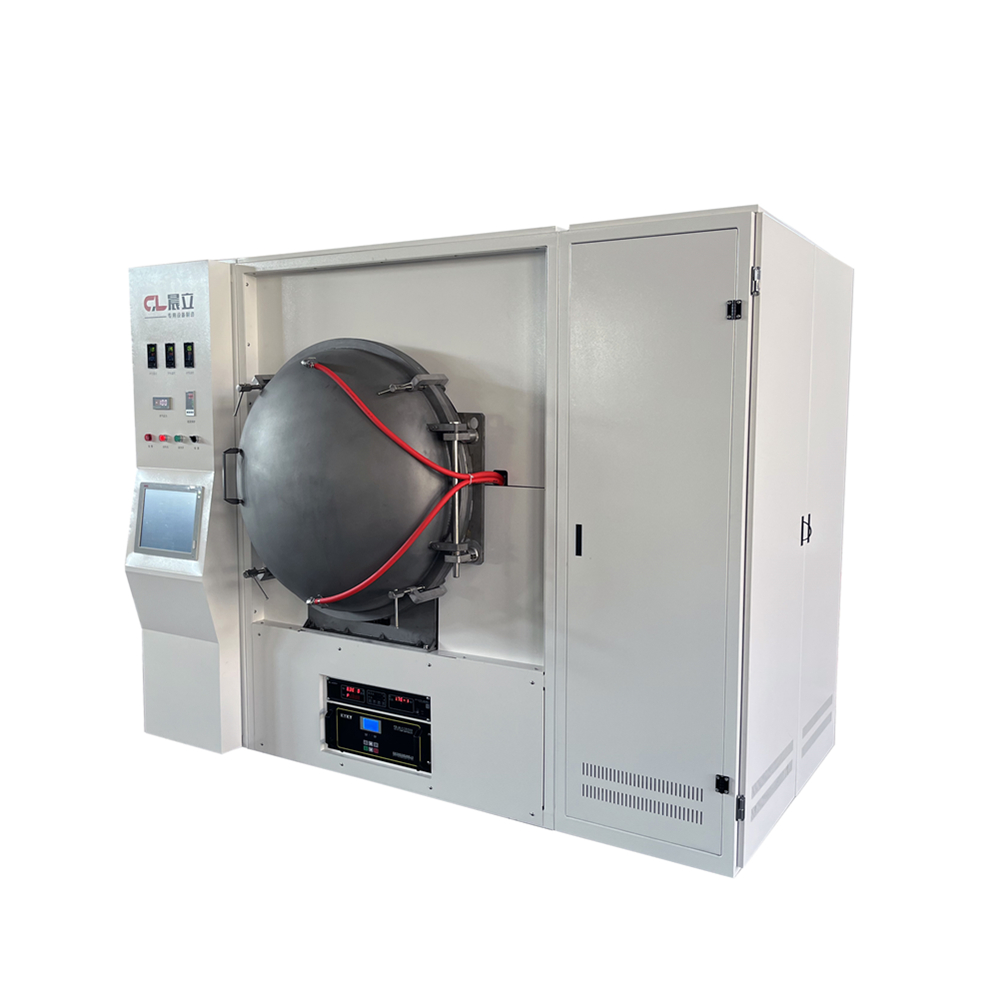

The CLZK-G vacuum sintering furnace is composed of a main unit, vacuum system, electronic control system, water cooling system, etc.
Mainly used for vacuum sintering of metal powder raw materials, controllable silicon molybdenum sheet sintering, ceramics, hard alloys, etc., as well as vacuum brazing and other vacuum heat treatments of stainless steel, heat-resistant steel, non-ferrous metals, titanium alloys, magnetic materials, etc.
2. Main technical parameters
Effective heating zone size (mm) 600 × 500 × 500 or customer specified
Rack dimensions: width * height 400 * 400
Maximum temperature (℃) 1000
Furnace loading capacity (kg) 200
Uniformity of furnace temperature (℃) ± 5
Heating power (kW) 60KW
Ultimate vacuum degree (Pa) 1 × 10-4
